Bubble Roll Sizes Explained- 3/16", 5/16", and 1/2"- Which One to Use

Bubble rolls come in three standard sizes- 3/16", 5/16", and 1/2"- which refer to the height of each bubble, not its diameter. Small 3/16" rolls protect lightweight, fragile items from scratches and abrasion. Medium 5/16" rolls add shock absorption for heavier items. Large 1/2" rolls are the best void-fill option and maximum cushion for impact-prone shipments. Available in 12", 24", and 48" widths from StarBoxes, with lengths from 100 feet up to 4,200 feet for high-volume operations.

What Do Bubble Roll Size Numbers Actually Mean?

If you've ever looked at bubble wrap specs and wondered whether 3/16" refers to the width, height, or diameter of each bubble- you're not alone. It's one of the most common points of confusion when buying bubble rolls in bulk, and most product listings don't explain it.

The number refers to the height of the bubble- how tall each air pocket stands when the roll is lying flat. The diameter of the same bubble is actually wider than its height. A 3/16" bubble is roughly 3/8" in diameter. A 5/16" bubble is about 1" in diameter. A 1/2" bubble spans about 1.25" across. That distinction matters because a taller bubble contains more air and absorbs more energy on impact, while a wider bubble makes more contact with the item's surface.

All StarBoxes bubble rolls are perforated every 12" for easy tearing without scissors. Widths are 12", 24", and 48", and lengths range from 100 feet for small e-commerce operations to 4,200 feet per roll for high-volume warehouses.

The Three Standard Bubble Roll Sizes- Full Specifications

Here is the complete side-by-side comparison of all three standard bubble roll sizes available from StarBoxes.

Which Bubble Roll Size for Which Product?

Most buying decisions happen here- and most bubble roll guides fail here by listing the sizes without matching them to actual products. This is the full decision framework.

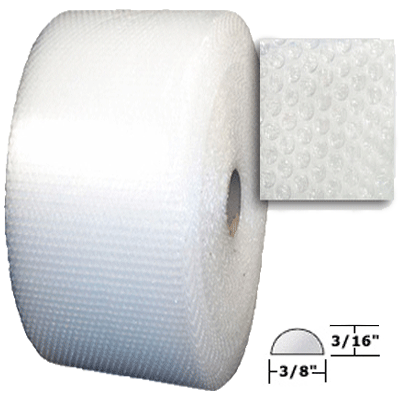

Use 3/16" Small Bubble Rolls for Surface Protection

Small bubble roll is the standard for most e-commerce and moving operations. The tightly-packed bubbles conform well to irregular shapes and prevent chips, scratches, and abrasion on-

• Glassware and china- multiple layers of 3/16" prevent damage on stems, rims, and handles.
• Consumer electronics screens- phones, tablets, laptop screens, monitors. Small bubbles protect against scratches without creating pressure points.
• Books, printed materials, and flat documents- 3/16" wraps flat items neatly without adding bulk
• Jewelry, figurines, collectibles- the fine bubble pattern conforms to irregular shapes and tight details.
• Small kitchen appliances, camera equipment, audio components, and delicate mechanical parts

The one thing 3/16" doesn't do well- absorb a hard direct impact. If a box might be dropped from a height, you need a larger bubble size underneath- or a double-layer approach.

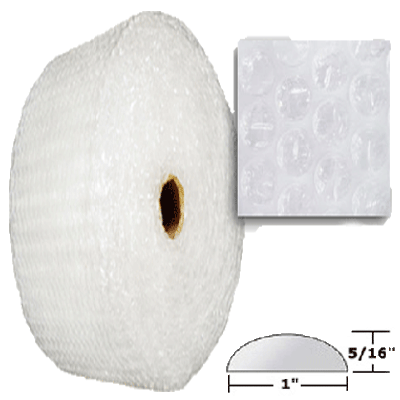

Use 5/16" Medium Bubble Rolls for Cushioning and Heavier Items

A medium bubble roll is the right upgrade when an item is heavier, bulkier, or more vulnerable to impact than to surface abrasion. The larger air pockets absorb more shock energy. Use 5/16" for-

• Framed artwork, mirrors, and glass tabletops- need cushioning that creates a standoff distance from box walls
• Small kitchen and household appliances- blenders, coffee makers, stand mixers, table lamps
• Heavier electronics- laptops, gaming consoles- where you want surface protection and impact absorption in one layer
• Box void fill- 5/16" compresses and rebounds better than 3/16" inside a box, absorbing impacts without fully collapsing
• Sculpted artwork, ceramics, and irregular-shaped decorative objects with raised surfaces

Many experienced packers layer sizes- a first wrap of 3/16" directly on the item for surface protection, then 5/16" loosely around the outside for cushion. This double-layer approach is effective for one-of-a-kind or high-value items and adds insurance against the edge cases where a single size isn't enough.

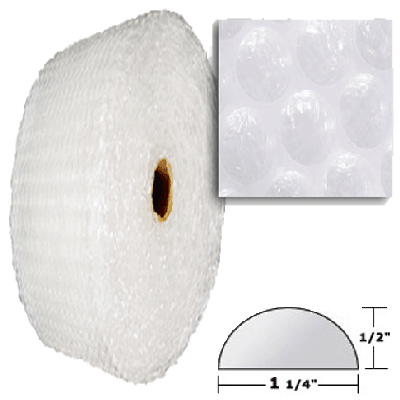

Use 1/2" Large Bubble Rolls for Void Fill and Maximum Impact Resistance

The large bubble roll is the most commonly misapplied size. Its real strength is void fill and heavy-impact cushioning for oversized objects- not close-wrapping fragile items. Use 1/2" for-

• Lining the inside of boxes before placing items- large bubbles create a thick, resilient layer that won't compress fully even under heavy contents
• Wrapping furniture surfaces for moving- glass cabinet doors, tabletops, dresser mirrors, and large flat surfaces
• Protecting the sides of flat-screen TVs and large monitors during freight shipping
• Filling large voids in crates and pallets- a cleaner, less-messy alternative to packing peanuts for large empty spaces
• Extra cushioning in double-boxing for heavy machinery components or high-value collectibles

A practical note from StarBoxes' own sales data- large 1/2" bubble rolls are the single highest-revenue bubble product on the site, driven largely by commercial shippers who buy high-volume rolls for recurring pallet and freight applications. The 520' x 12" wide large bubble roll is the top-grossing packaging product site-wide.

Choosing Your Width- 12", 24", and 48" Rolls

The bubble size gets all the attention, but width selection affects your per-item packing cost and labor efficiency more than most buyers realize. All three bubble sizes come in 12", 24", and 48" widths.

For most e-commerce sellers running their own packing stations, 12" is the practical standard. The 24" width pays off when you start shipping mid-size items with any consistency- the per-foot cost improvement is real. The 48" roll makes sense almost exclusively in warehouse and freight scenarios.

Bubbles In or Out? The Wrapping Orientation Question

Bubbles face inward, toward the item. This is the correct orientation, and it matters for three reasons.

First, when the bubble side contacts the item's surface, the air pockets grip the item and provide direct cushioning. The flat film side facing outward gives you a smooth, tape-friendly surface- tape applied over bubbles catches, tears, and leaves gaps in the seal.

Second, with bubbles facing in, the flat film acts as an exterior shield that protects the bubbles themselves from stacking pressure, sharp edges, and exterior abrasion during transit. Bubbles facing outward are exposed to everything the package encounters- and a popped bubble provides zero cushioning.

Third, bubbles-in creates a slight negative space where the flat sections of film between bubbles lift away from the item's surface. That air gap adds a small additional cushioning layer beyond the bubbles themselves- particularly useful on cylindrical or irregular shapes.

Exception for box lining- when using a 1/2" large bubble as a box liner rather than a wrap, lay the sheet with bubbles facing upward into the box, so they contact the item directly when placed inside.

How Much Bubble Roll Do You Need?

Rough estimates that work for most packing operations-

• Small items (cups, phones, figurines, jewelry)- 1–2 feet of 12" roll per item
• Medium items (books, appliances, framed art, shoes)- 3–6 feet per item
• Large items (mirrors, flat-screen TVs, desktop computers)- 10–20 feet per item

For a business shipping 50 small packages per day, a single 700' x 12" small bubble roll handles roughly 350–700 shipments depending on protection level. At 100 packages per day, a 4,200' x 12" roll cuts your roll-change frequency dramatically- and your per-foot cost.

Need help calculating the right spec for your monthly shipping volume? Request a custom bulk quote- StarBoxes specs the roll sizes, widths, and quantities that match your operation.

Special Bubble Roll Types at StarBoxes

Anti-Static (Pink) Bubble Rolls- 3/16" Only

Standard clear bubble wrap generates static electricity during wrapping. For most products, that's irrelevant. For electronics- hard drives, circuit boards, motherboards, component cards, SSDs- a static discharge can cause invisible internal damage without any visible sign. The anti-static (pink) bubble roll is treated to neutralize that charge. The pink color indicates that anti-static treatment is present. Available in 12" width from 175' to 700' rolls, in both the StarBoxes and UOFFICE private-label lines.

Kraft Bubble Rolls

Kraft bubble rolls have a #40 Kraft paper exterior to a 3/16" bubble interior. The Kraft exterior adds moisture resistance and gives you a writable, label-friendly surface- ideal for wrapping furniture (drawers, cabinet doors, dressers) where a clear film would slide or stick. Available in 12" width, 125' per roll.

Colored Bubble Rolls

StarBoxes stocks coloured bubble rolls in blue, green, and red in addition to standard clear. Identical protection, different color. Used by operations that color-code departments, product lines, or fragility levels for faster visual identification on the packing floor.

For electronics applications requiring both size guidance and static protection, see the anti-static bubble roll product page for full specs and pack sizes. For a detailed comparison of bubble wrap and foam wrap as protective materials, we've covered the trade-offs and best applications in our guide to bubble rolls vs foam wrap.

Frequently Asked Questions

1. What is the difference between 3/16 and 5/16 bubble wrap?

The numbers refer to bubble height. A 3/16" bubble is shorter and tighter, providing surface protection against scratches and abrasion- ideal for glassware, screens, and small fragile items. A 5/16" bubble is taller with more air volume, offering better shock absorption for heavier items like appliances, mirrors, and framed artwork. Many packers use both: 3/16" against the item and 5/16" as an outer cushion layer.

2. Which bubble wrap size is best for shipping?

For most e-commerce shipments, a 3/16" small bubble is the standard choice. It protects against surface damage, conforms to irregular shapes, and adds minimal weight to the package. Upgrade to a 5/16" medium bubble for heavier or more impact-vulnerable items. Use 1/2" large bubble primarily as void fill inside boxes rather than for direct item wrapping.

3. Should bubble wrap bubbles face in or out?

Bubbles face inward, toward the item. The bubble side grips the item's surface and provides direct cushioning. The flat side faces outward, giving a smooth surface for tape. Wrapping with bubbles facing out leaves only flat film against the item- no cushioning contact- and exposes the bubbles to puncture from exterior pressure and sharp edges in transit.

4. How much does a roll of bubble wrap cost?

Retail rolls of 12" x 75–100 feet typically run $10–$30. Bulk industrial rolls from packaging distributors drop the per-foot cost significantly- a 700' x 12" roll runs roughly $0.04–0.06 per foot at wholesale versus $0.10–0.18 at retail. StarBoxes' $35+ free-shipping floor means a single bulk roll often qualifies for free shipping, further improving the effective per-foot cost.

5. What size bubble wrap for fragile items?

For most fragile items, a 3/16" small bubble is the right default- excellent abrasion and scratch protection while conforming tightly to the surface. For heavy, fragile items (large ceramics, stone sculptures, oversized glass), start with 3/16" against the item and add 5/16" or 1/2" as an outer wrap to handle drop and impact forces.

6. What is the difference between bubble wrap and bubble roll?

The same product with two different names. Bubble roll is the industry and wholesale term; bubble wrap is the consumer retail term. Bubble roll typically refers to a continuous roll on a core used in professional operations. Both use the same film-and-bubble construction in 3/16", 5/16", and 1/2" sizes. StarBoxes sells both B2C roll sizes and industrial B2B cases.

7. Can I use large bubble wrap to ship fragile items?

Large 1/2" bubble wrap is best as a secondary cushion or void fill, not primary wrap for delicate items. The large bubbles create pressure points on small, fragile items and do not conform to complex shapes. Use 3/16" directly on the item, then 1/2" as an outer wrap or box liner for additional impact resistance.

Choosing the Right Bubble Roll for Your Operation

The rule of thumb that covers most situations- 3/16" for everything fragile that fits in a standard shipping box, 5/16" when the item is heavier than a couple of pounds or when you need surface protection and cushioning in a single layer, 1/2" when void fill or maximum impact protection is the primary goal.

StarBoxes carries all three sizes in 12", 24", and 48" widths, from 100-foot starter rolls to 4,200-foot industrial cases- including anti-static (pink) 3/16" for electronics, kraft-backed 3/16" for furniture, and colored rolls for warehouse color-coding. Get orders over $35 that ship free with same-day carrier pickup on orders placed before 3 p.m. EST.

Ready to stock your packing station? Shop the complete bubble roll collection- or request a custom bulk quote for volume pricing on cases and pallet quantities.
